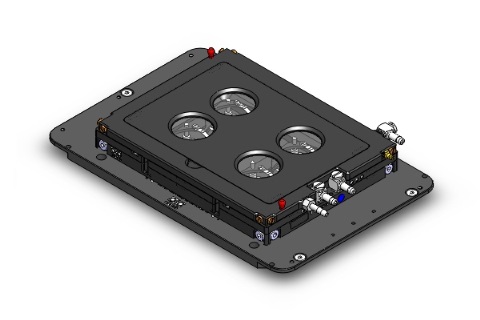

H101-NIKON-TI-S-ER
Compatible with the following XY stages: Nikon TI-S-E, TI-S-ER, TI2-S-SE-E, TI2-S-SS-E. In addition it can be screwed to mechanical stages T/Ti-SR (focal plane raised by 0,5 mm) and TC-S-SR/TC-S-SRF (focal plane raised by 1mm). For mechanical stages T/Ti-SR and TC-S-SR/TC-S-SRF the choice of this chamber is recommended only when using multiwell plates, otherwise choose H101-NIKON-TI-SR and H101-MINI respectively.
Magnetic interchangeable inserts allow to use:
Features:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- Chamber heated by means water circulation in water tight channels present in the main body and in the lid

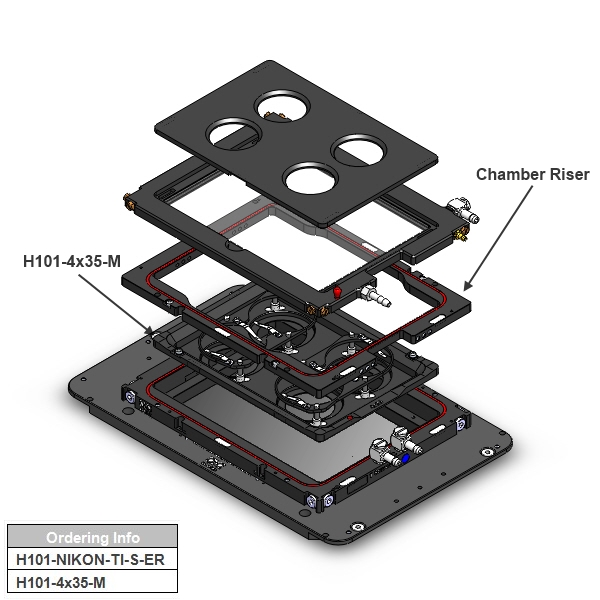

- Flexible chamber height thanks to the removable chamber riser
- Magnets allow easy interchange chamber inserts
- It contains also an insert for oil immersion imaging
- Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser
Available Inserts
| H101-6MW | 6 well plates |   |
| H101-12MW | 12 well plates |  |
| H101-24MW | 24 well plates |  |
| H101-24MW-NUNC | 24-well NUNC/GREINER plates |  |
| H101-48MW | 48-well plates |  |
| H101-96MW | 96-well plates |  |
| H101-1x35-M | #1 35mm Petri-dish |  |
| H101-1xGS-M | #1 1x3in. chamberslide |  |
| H101-1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| H101-1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| H101-1x60-M | #1 60mm Petri-dish |  |
| H101-1xT25-M | #1 Nunc and Greiner T25 flask |  |
| H101-2x35-M | #2 35mm Petri-dish |  |
| H101-2xGS-M | #2 1x3in. chamberslides |  |
| H101-2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| H101-2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| H101-2x60-M | #2 60mm Petri-dish |  |
| H101-4x35-M | #4 35mm Petri-dish |  |
| H101-GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| H101-LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| H101-LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| H101-LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| H101-LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| H101-GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| H101-6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |

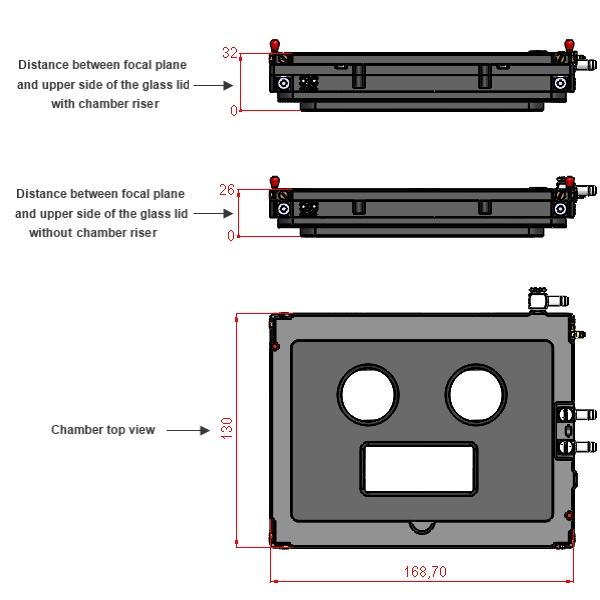

![H101-K-FRAME-[DIMENSIONS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_k_frame/H101-K-FRAME-%5BDIMENSIONS%5D_600x600.jpg)
![H101-K-FRAME-[ADAPTERS-2]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_k_frame/H101-K-FRAME-%5BADAPTERS-2%5D_600x600.jpg)
![H101-K-FRAME-[ADAPTERS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_k_frame/H101-K-FRAME-%5BADAPTERS%5D_600x600.jpg)
![H101-K-FRAME-[MAGNETIC LOCKS].jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_k_frame/H101-K-FRAME-%5BMAGNETIC%20LOCKS%5D.jpg)

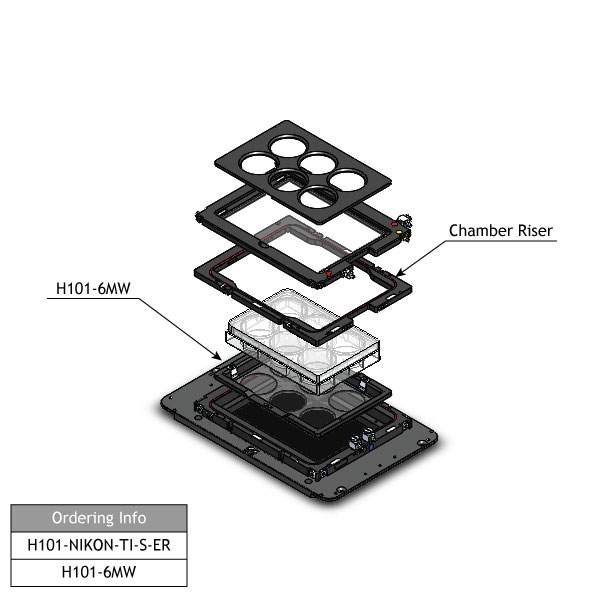

![H101-NIKON-TI-S-ER-[6MW]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_nikon_ti_s_er/H101-NIKON-TI-S-ER-%5B6MW%5D_600x600.jpg)
