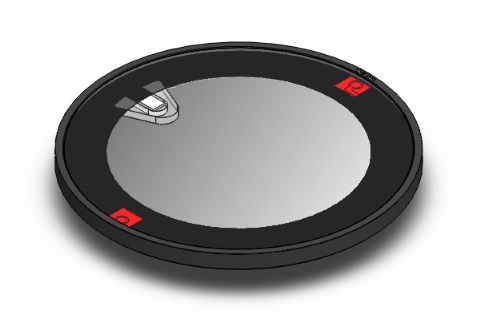

H401-GLASS-90
The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.
The glass is chemically strengthened and protected by a rigid aluminum frame.
It requires H401-T-CONTROLLER.
Features
- Flush with stage top
- Temperature range: from ambient to 60°C
- Accuracy on specimen: ±0.3°C
- 4.3'' touch screen controller
- On-board Data logging and download routines to USB drive
- ITO glass coating ensures uniform glass heating
- Glass thickness: 0.5 mm
- Aluminum frame improves rigidity
- Chemical glass strengthening ensures highest resistance

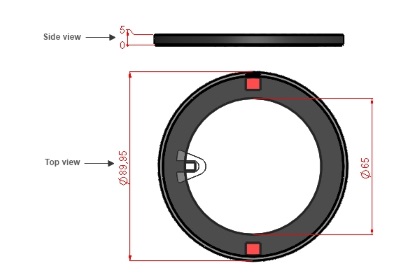

![H401-GLASS-90-[DIMENSIONS]_420x280.jpg](/images/okaImages/product_categories/ivf/H401-GLASS-90-[DIMENSIONS]_420x280.jpg)
H401-T-CONTROLLER
T - range: from ambient to 60°C
4.3'' touch screen interface
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Data Logging
On-Board Data Logging - stored in local memory
Download to USB
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
Touch Pad Interface
Beautifully designed, simple to use and very compact.
T - range: from ambient to 60°C
4.3'' touch screen interface
Beautifully designed, simple to use and very compact.
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Take advantage of the dual channel option
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
Data Logging
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
H601-M-FRAME-GLASS
The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.
H601-M-FRAME-GLASS features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in rigid aluminum frame to ensures the highest resistance against breakage and scratches.
Protected by 10 year warranty on glass damage.
It requires H401-T-CONTROLLER or H401-T-PENNY.
Features
- Fits on stages with mounting frame M
- Temperature range: from ambient to 60°C
- Accuracy on specimen: ±0.3°C
- ITO glass coating ensures uniform glass heating
- Glass thickness: 0.5 mm
- Aluminum frame improves rigidity
- Anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass
- 10 year warranty on glass damage
H401-T-PENNY
Single Channel
Compact
Affordable
H401-T-CONTROLLER
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
Touch Pad Interface
Beautifully designed, simple to use and very compact.
T - range: from ambient to 60°C
4.3'' touch screen interface
Beautifully designed, simple to use and very compact.
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Take advantage of the dual channel option
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
Data Logging
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
H401-T-PENNY
H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.
Features
- Temperature range: from ambient to 60°C
- Set point resolution: 0.1°C
- Calibration via addition of offset
- Maximum Output: 60 W
- Dimensions: 83.65x45.05x20.20 mm
- Weight: 47.50 g
H401-K-FRAME-METAL-GLASS
The Glass side of the Metal Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employes Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading. The glass is chemically strengthened and protected by a rigid aluminum frame.
The metal side of the Metal Glass T Plate features a trimmed 24 mm diameter observation opening for imaging with oil immersion lenses.
The metal and glass sides have independet temperture sensors for independent temperature control of each side.
The plate is wired and must be connected to either a Bold Line Controller or a Basic Controller.
Features
- Flush with stages with k-frame insert (160x110mm), compatible with the following XY stage: Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo), Prior H107 and H117, Leica (k-frame), Zeiss (k-frame), Olympus (k-frame)
- Temperature range: from ambient to 60°C
- Accuracy on specimen: ±0.3°C
- ITO glass side thickness: 0.5 mm, chemical glass strengthening ensures highest resistance
- Easy plate replacement, if necessary
- Flat respect to the rest of the XY stage
![H401-K-FRAME-METAL-GLASS-[DIMENSIONS]_420x280.jpg](/images/okaImages/product_categories/ivf/H401-K-FRAME-METAL-GLASS-[DIMENSIONS]_600x600.jpg)
Touch Pad Interface
Beautifully designed, simple to use and very compact.
OKO-TOUCH is all you need to operate the system.

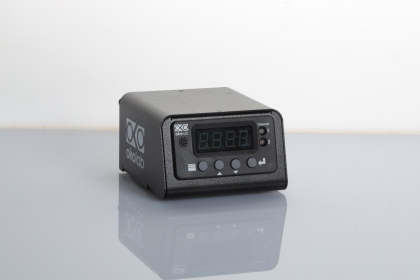

H401-T-DUAL
Push Botton Interface
Not compatible with gas Controllers
Not compatible with gas Humidifiers
Chamber feedback mode
No Room Temperature monitoring
No External Temperature Sensor
Compatible with Objective Heater. Manual calibration

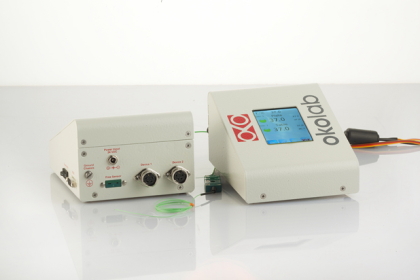

H401-T-DUAL-BL
Two independent control channels
3.2'' touch screen user interface
Data logging via RS232 and DATA LOG software
T range: from 3°C above ambient to 60°C
Self calibration routine
Dimensions: 84x125x164 mm
Temperature accuracy on the specimen: ±0.3°C, if room temperature remains within ± 1°C
H601-PRIOR-H117-GLASS-RECESSED
The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.
H601-K-FRAME-GLASS-RECESSED features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in rigid aluminum frame to ensures the highest resistance against breakage and scratches.
Protected by 10 year warranty on glass damage.
It requires H401-T-CONTROLLER or H401-T-PENNY.
Features
- Flush with Prior H117
- Recessed with respect to the rest of the XY stage. Rises the focal plane by only 1.5 mm.
- Temperature range: from ambient to 60°C
- Accuracy on specimen: ±0.3°C
- ITO glass coating ensures uniform glass heating
- Glass thickness: 0.5 mm
- Aluminum frame improves rigidity
- Anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass
- 10 year warranty on glass damage
Temperature Uniformity
assessed via Infra Red Imaging
T CONTROLLERS - choose one
H401-T-PENNY: single channel, compact and affordable
or
H401-T-CONTROLLER: dual channel, self-calibrating, data logging
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
Touch Pad Interface
Beautifully designed, simple to use and very compact.
T - range: from ambient to 60°C
4.3'' touch screen interface
Beautifully designed, simple to use and very compact.
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Take advantage of the dual channel option
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
Data Logging
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
H401-T-PENNY
H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.
Features
- Temperature range: from ambient to 60°C
- Set point resolution: 0.1°C
- Calibration via addition of offset
- Maximum Output: 60 W
- Dimensions: 83.65x45.05x20.20 mm
- Weight: 47.50 g

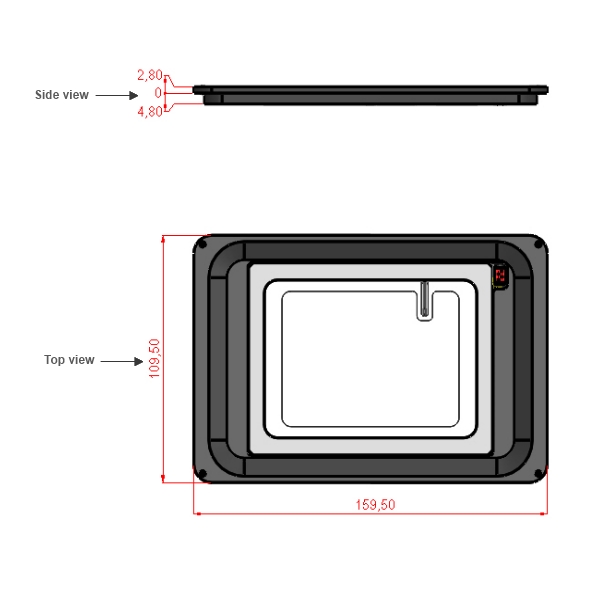

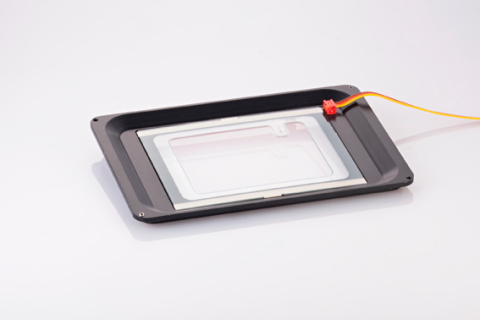

H401-K-FRAME-GLASS-RECESSED
The Glass T Plate creates a warm and optically transparent surface recessed with respect to the rest of the XY stage to maintain the same focal plane of the XY stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.
The glass is chemically strengthened and protected by a rigid aluminum frame.
It requires H401-T-CONTROLLER.
Features
- Flush with stages with k-frame insert (160x110mm), compatible with the following XY stage: Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo), Prior H107 and H117, Leica (k-frame), Zeiss (k-frame), Olympus (k-frame)
- Temperature range: from ambient to 60°C
- Accuracy on specimen: ±0.3°C
- 4.3'' touch screen interface
- On-board data logging and download routines to USB drive
- ITO glass coating ensures uniform glass heating
- Glass thickness: 0.5 mm
- Aluminum frame improves rigidity
- Chemical glass strengthening ensures highest resistance
- Easy plate replacement, if necessary
- Recessed with respect to the rest of the XY stage

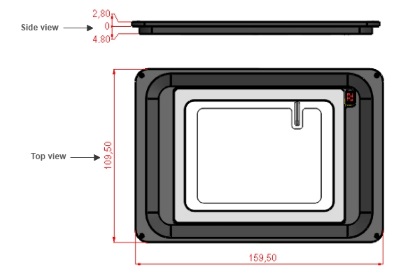

![H401-K-FRAME-GLASS-RECESSED-[DIMENSIONS]_420x280.jpg](/images/okaImages/product_categories/ivf/H401-K-FRAME-GLASS-RECESSED-[DIMENSIONS]_600x600.jpg)
H401-T-CONTROLLER
T - range: from ambient to 60°C
4.3'' touch screen interface
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Data Logging
On-Board Data Logging - stored in local memory
Download to USB
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
Touch Pad Interface
Beautifully designed, simple to use and very compact.
T - range: from ambient to 60°C
4.3'' touch screen interface
Beautifully designed, simple to use and very compact.
External T - sensor (included)
On-board Data logging and download routines to USB drive
One controllers can control independently up to two devices
Self calibration routines allow to improve temperature accuracy
Take advantage of the dual channel option
One channel controls the metal T-Pad.
The other channel controls the Glass Plate.
Data Logging
On-Board Data Logging - stored in local memory
A simple procedure allows to download data to USB.
Mobile: +1 (650) 410 0756
