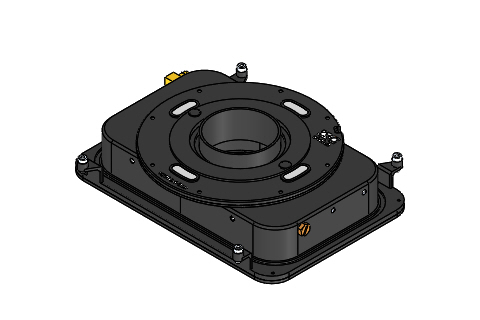

H301-LG-DLS
Compatible with Leica DLS module, it allows usage of illumination and detection lenses. Fits in the Super Z galvo stage, by replacing the Leica specimen holder
The chamber can fit:
- 35/60 mm Petri dishes
- Compatible with Leica DLS module, it allows usage of illumination and detection lenses
- Includes an objective collar for detection lenses Leica HC APO L 10x/0.3 W and Leica HC FLUOTAR L 25x/0.95 W
- Uniformly heated by means of embedded electric resistances and covered with a temperature controlled lid
- Spring locks hold Petri dishes, in correct position inside the chamber
- Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
- The chamber screws onto Super Z galvo stage
- Chamber weight, 130 g.
- To control the humidity into the chamber humidity module is recommended: HM-ACTIVE

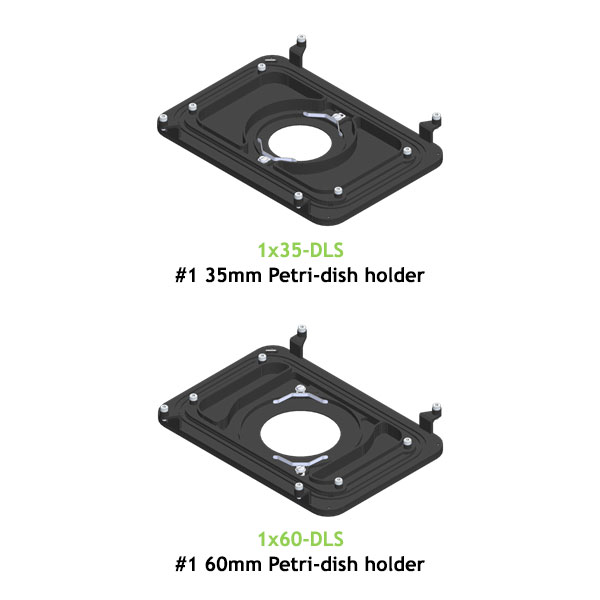

Available Inserts

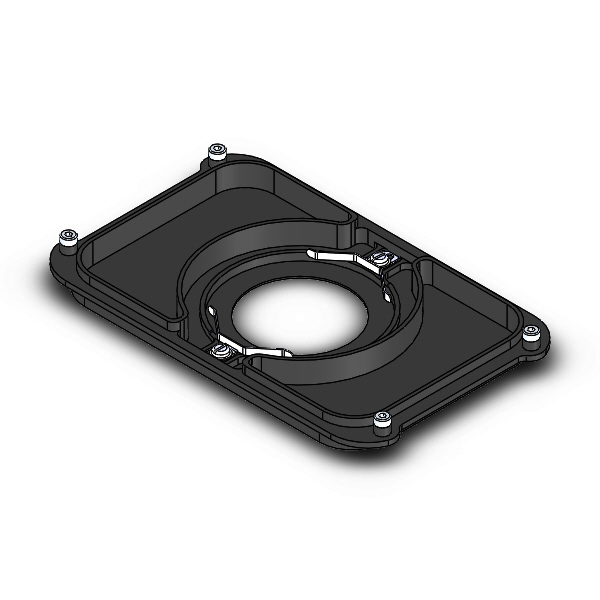

| 1x35-DLS | #1 35mm Petri-dish holder |   |

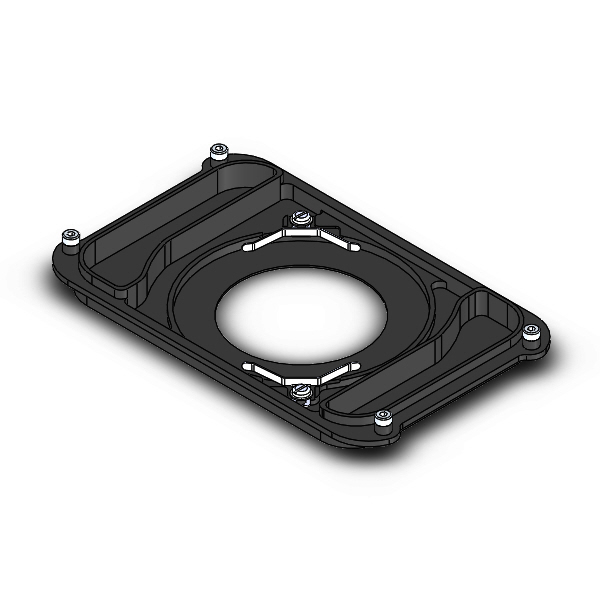

| 1x60-DLS | #1 60mm Petri-dish holder |  |

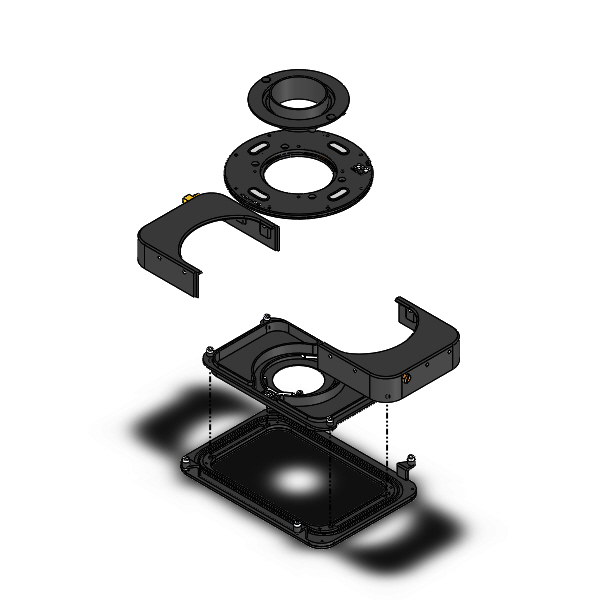

![H301-LG-DLS-[Exploded-OPEN]_600x600.JPG](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_lg_dls/H301-LG-DLS-[Exploded-OPEN]_600x600.JPG)
![H301-LG-DLS-[ADAPTERS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_lg_dls/H301-LG-DLS-[ADAPTERS]_600x600.jpg)

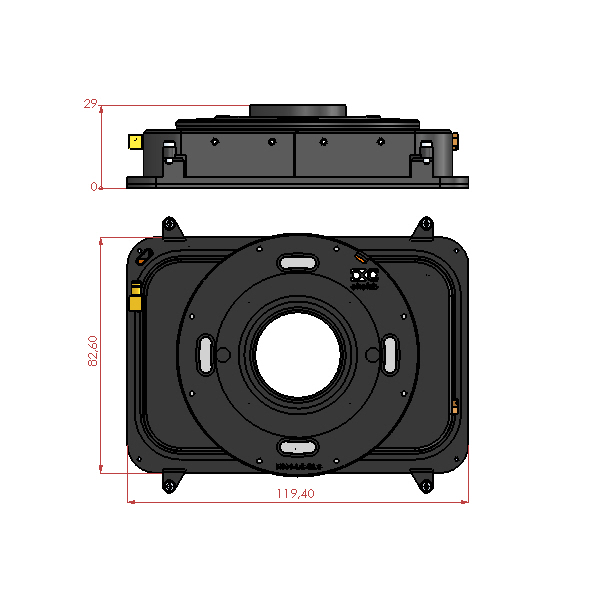

![H301-LG-DLS-[LID-STANDARD]-[DIMENSIONS]_600x600.JPG](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_lg_dls/H301-LG-DLS-[LID-STANDARD]-[DIMENSIONS]_600x600.JPG)
