Okolab - H301-PI-736-160x110

Screws onto Physik Instrumente PI P-736 with 160x110 aperture - comes with Sliding Lid

Magnetic interchangeable inserts allow to use:

Features:

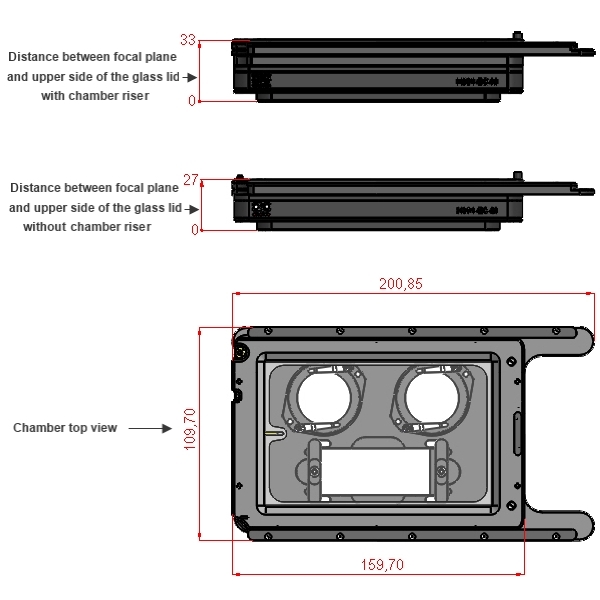

Sliding lid for easy pipetting
Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
Magnets allow easy interchange chamber inserts
Magnetic locks hold Petri, Slides and MW in correct position inside the chamber

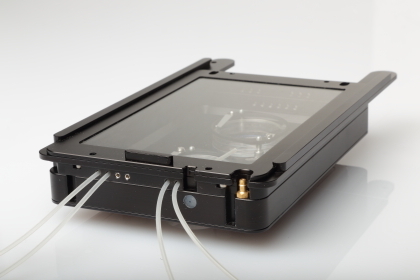

Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

Remove the chamber riser and use the Koehler Lid

Each chamber features up to 12 holes for inlet and outler of perfusion tubings

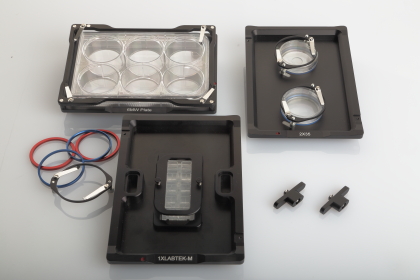

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

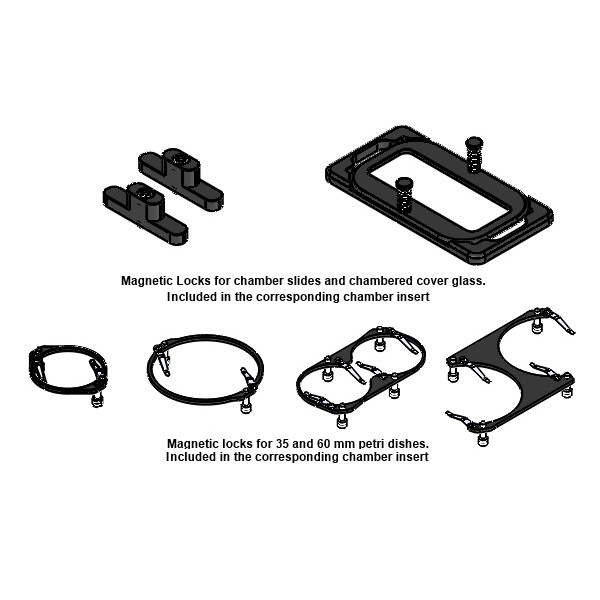

Keep the sample in the correct position by using the Magnetic Locks

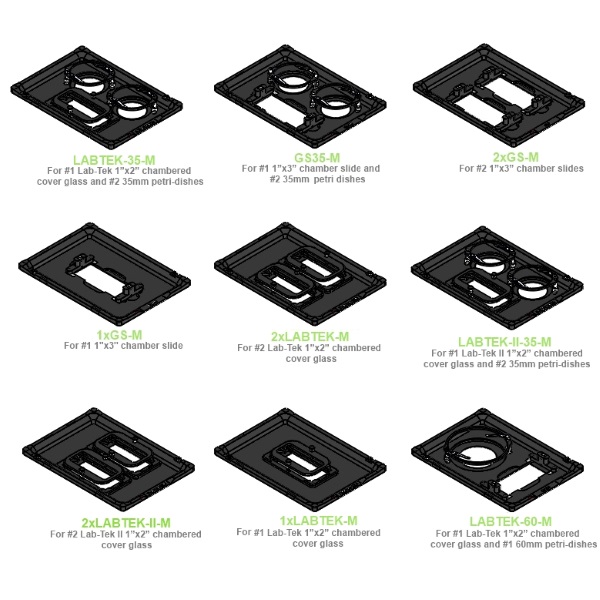

Available Inserts

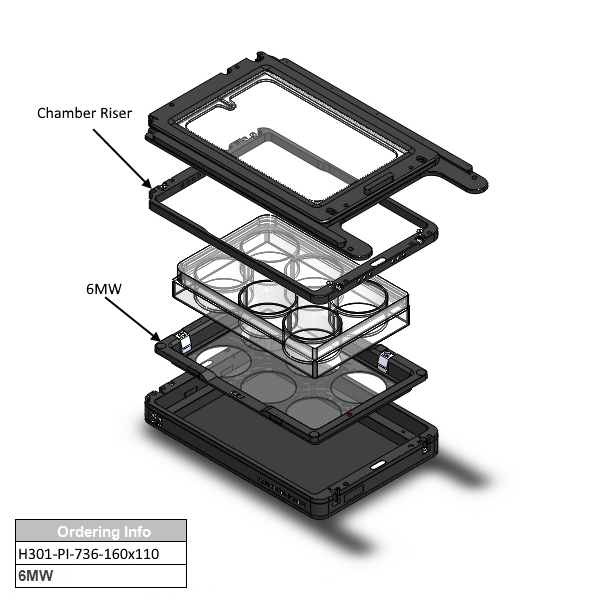

6MW	6 well plates
12MW	12 well plates

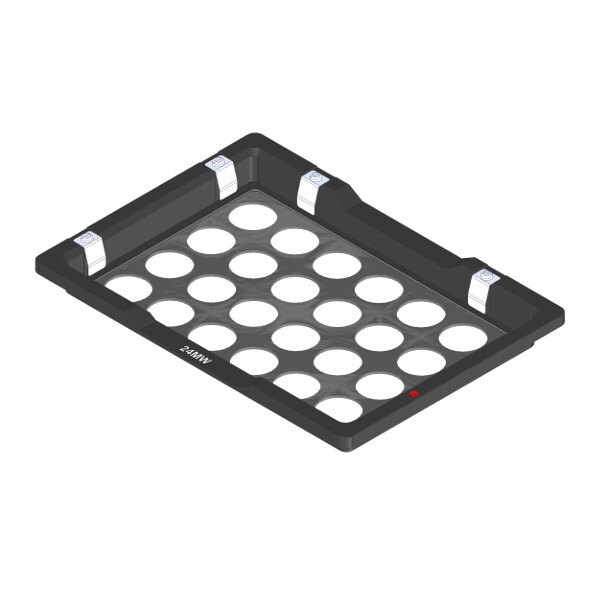

24MW	24 well plates

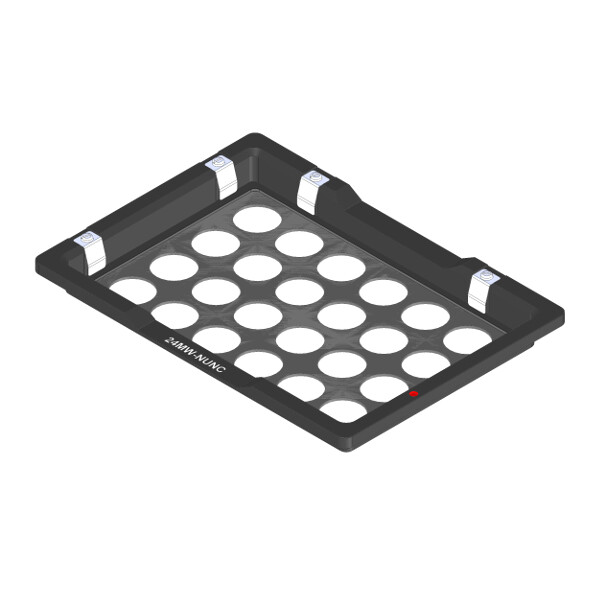

24MW-NUNC	24-well NUNC/GREINER plates

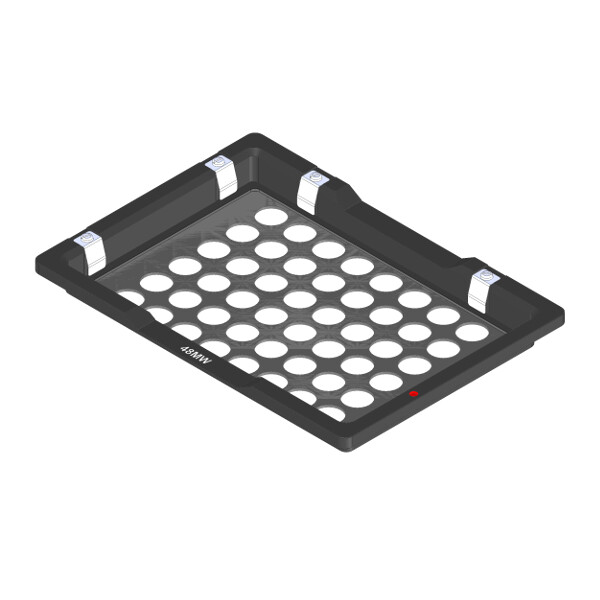

48MW	48-well plates

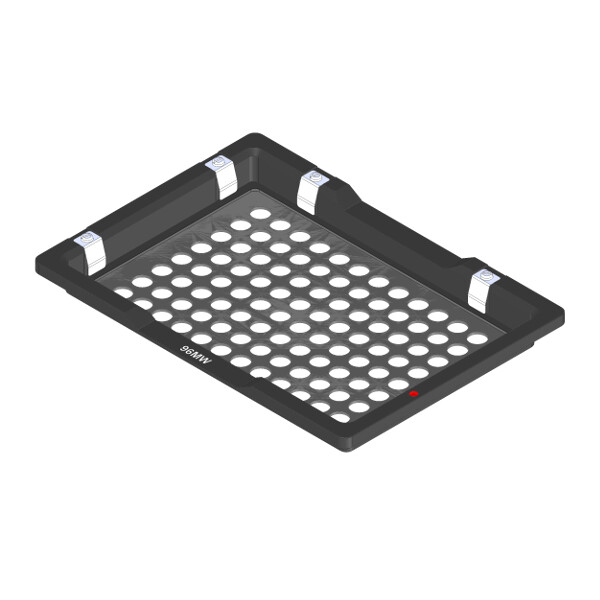

96MW	96-well plates.

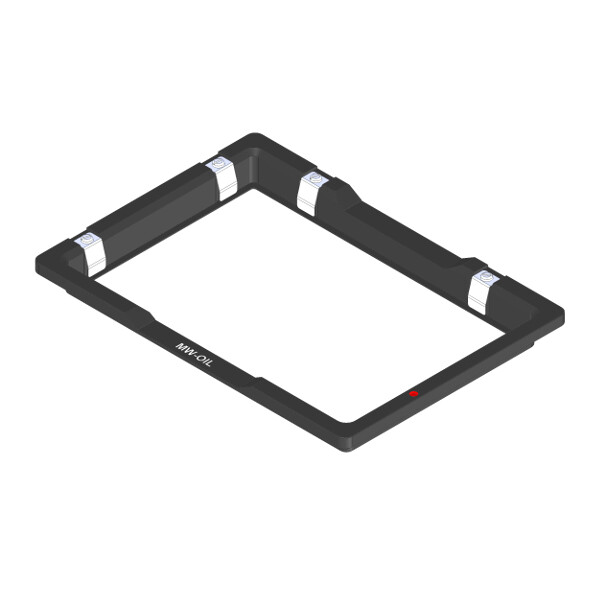

MW-OIL	Open frame to image multi well plates with oil immersion objectives

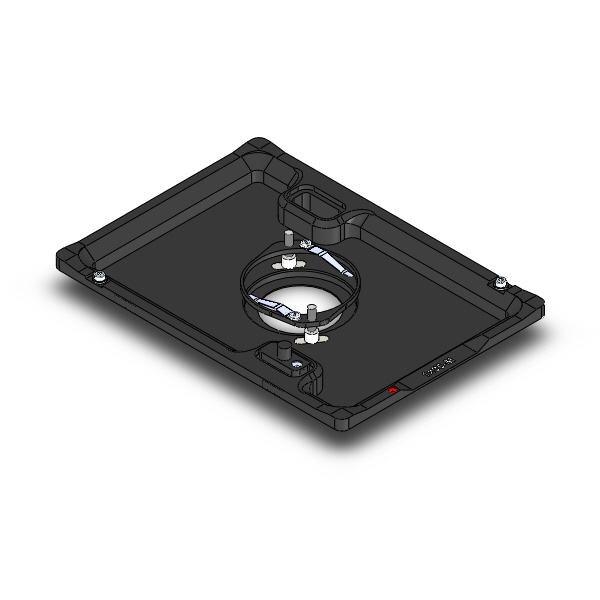

1x35-M	#1 35mm Petri-dish

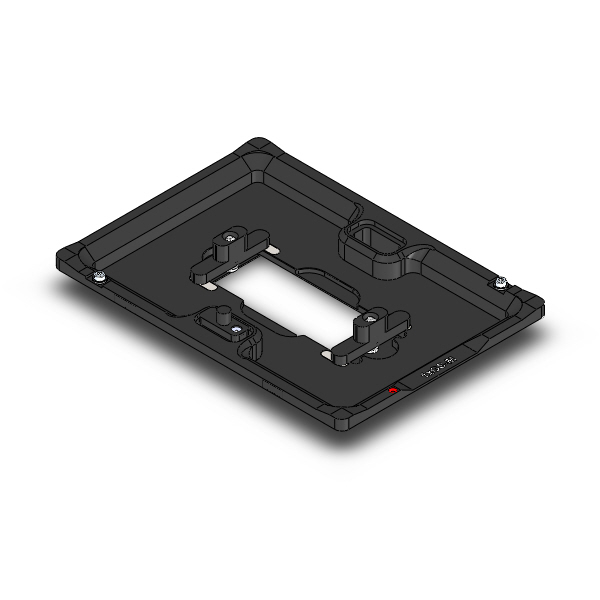

1xGS-M	#1 1x3in. chamberslide
1xLABTEK-M	#1 Lab-Tek 1x2 in. chambered cover glass

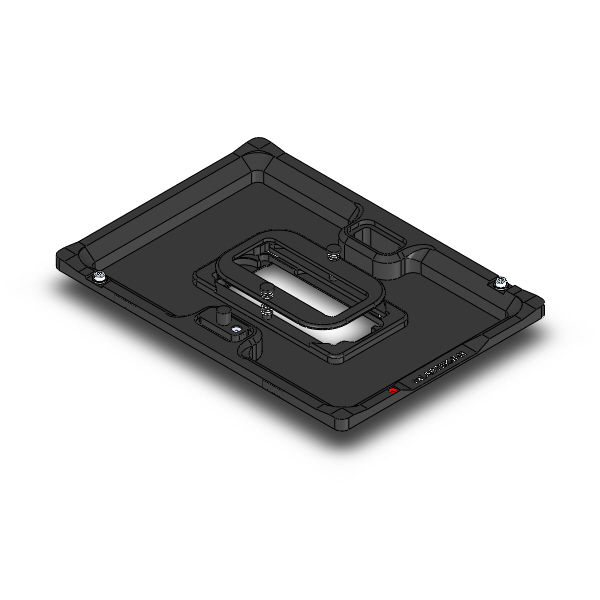

1xLABTEK-II-M	#1 Lab-Tek II 1x2 in. chambered cover glass

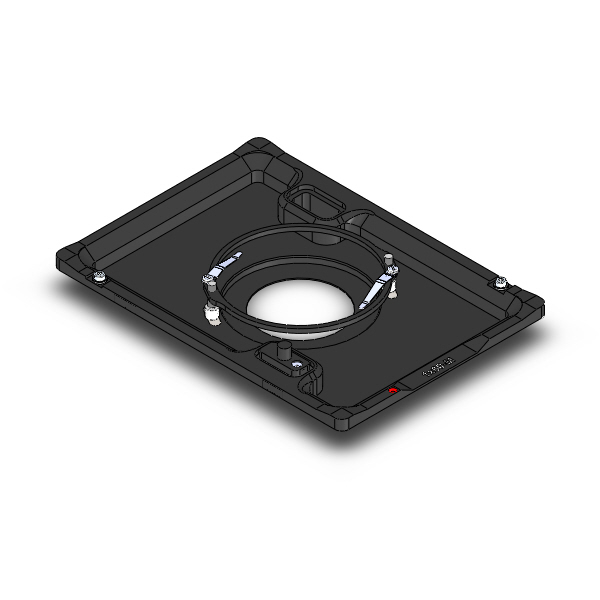

1x60-M	#1 60mm Petri-dish

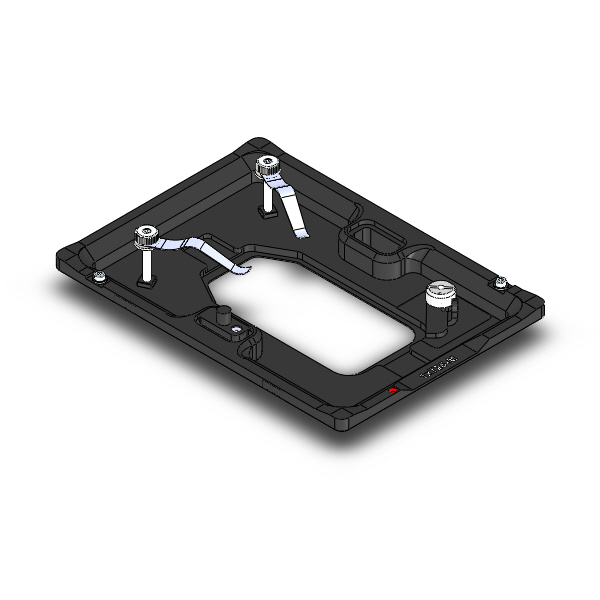

1xT25-M	#1 Nunc and Greiner T25 flask

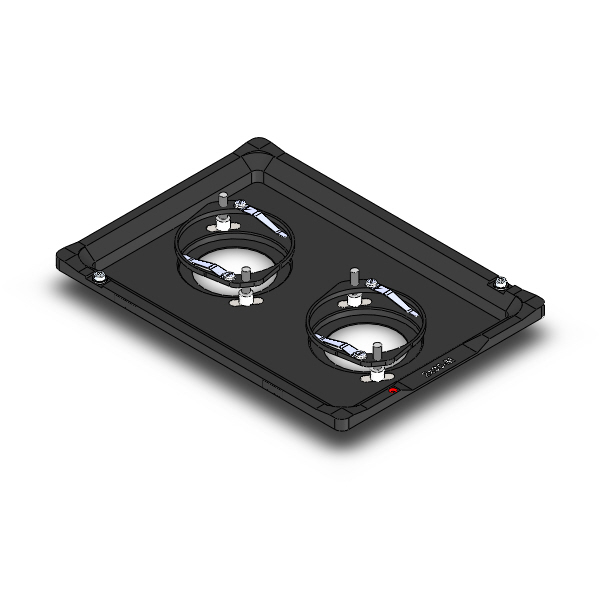

2x35-M	#2 35mm Petri-dish

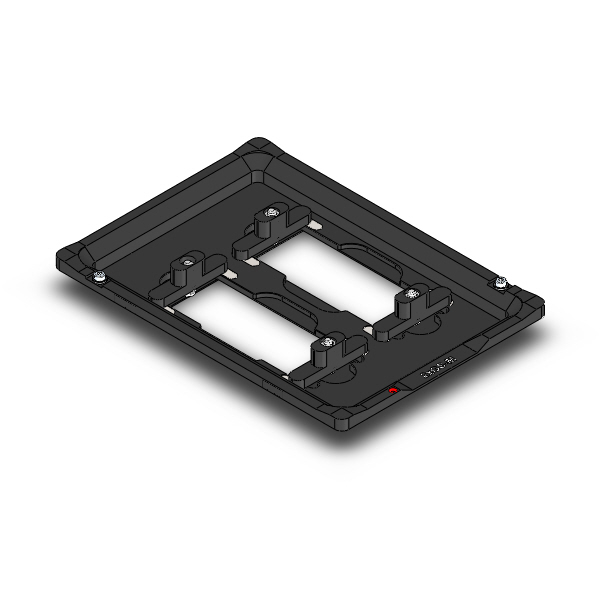

2xGS-M	#2 1x3in. chamberslides

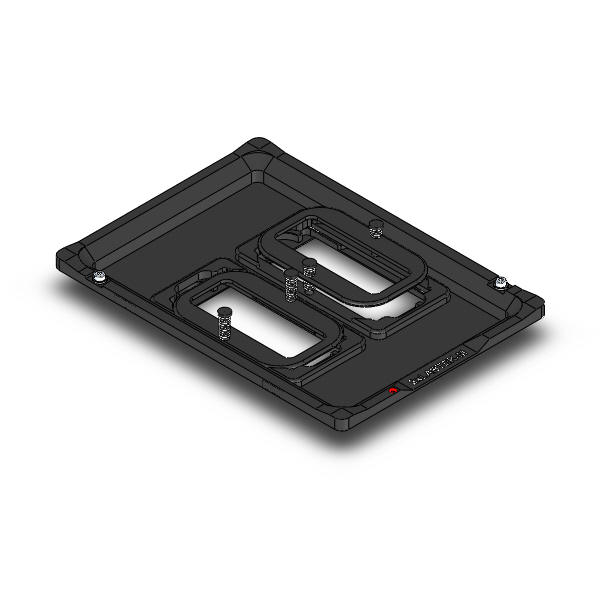

2xLABTEK-M	#2 Lab-Tek 1x2 in. chambered cover glass

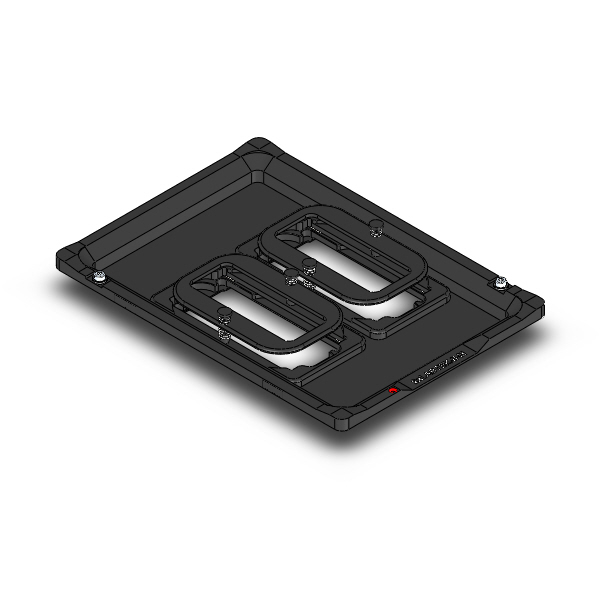

2xLABTEK-II-M	#2 Lab-Tek II 1x2 in. chambered cover glass

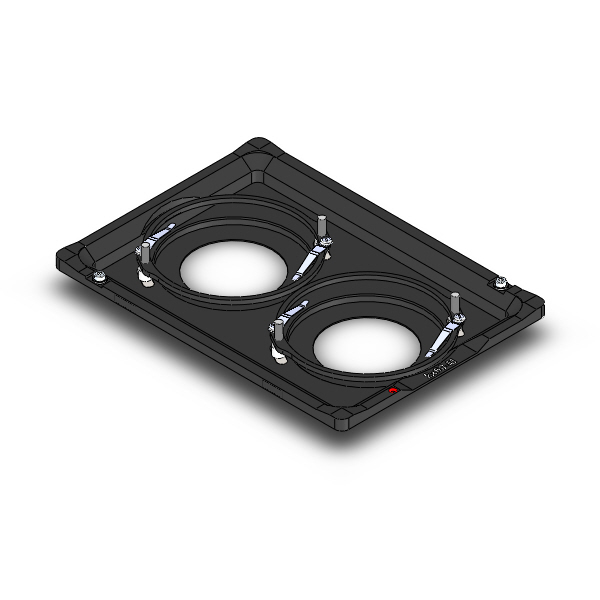

2x60-M	#2 60mm Petri-dish

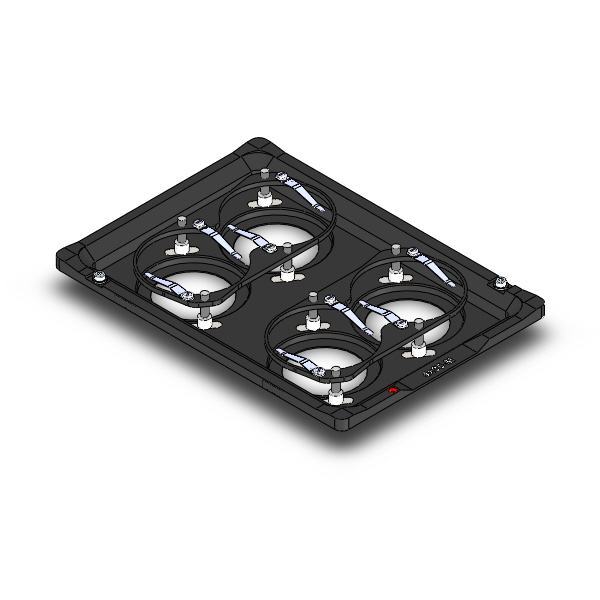

4x35-M	#4 35mm Petri-dish

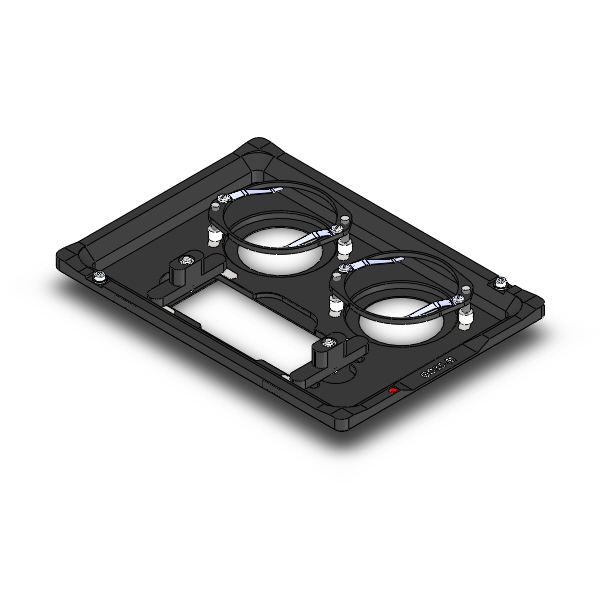

GS35-M	#1 1x3in. chamberslide and #2 35mm Petri-dish

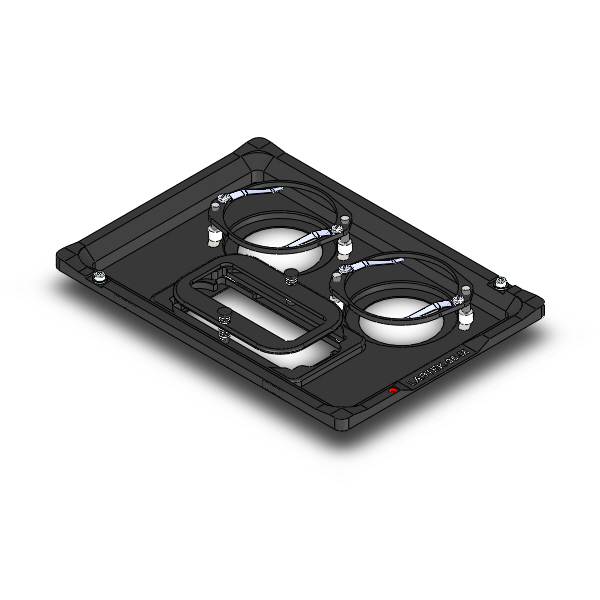

LABTEK-35-M	#1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish

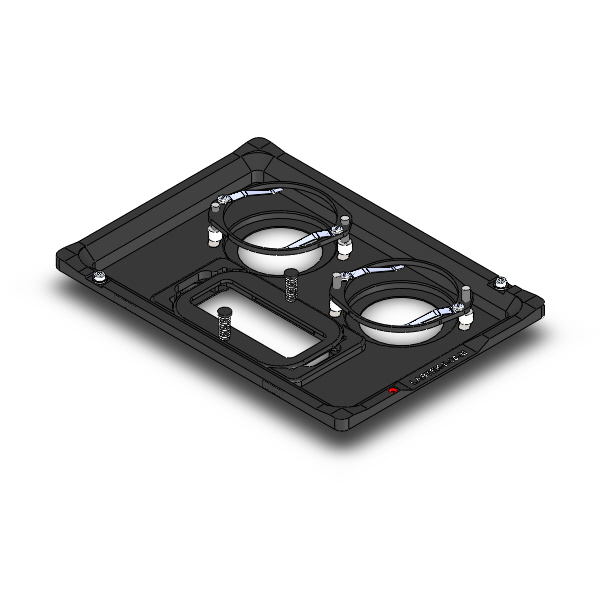

LABTEK-II-35-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish

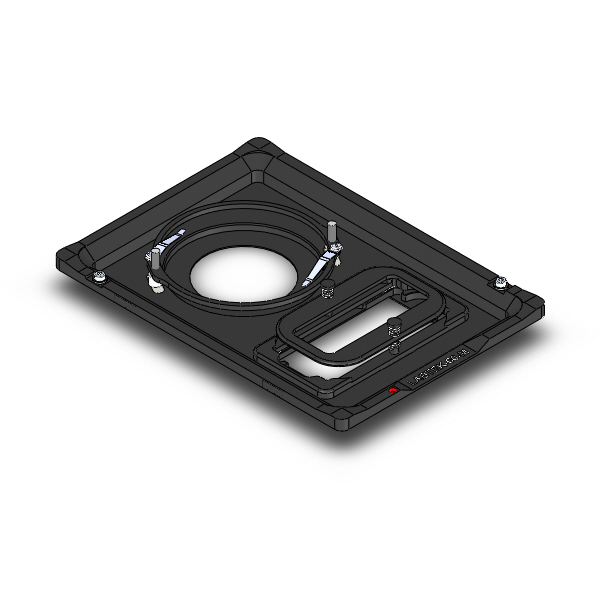

LABTEK-60-M	#1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish

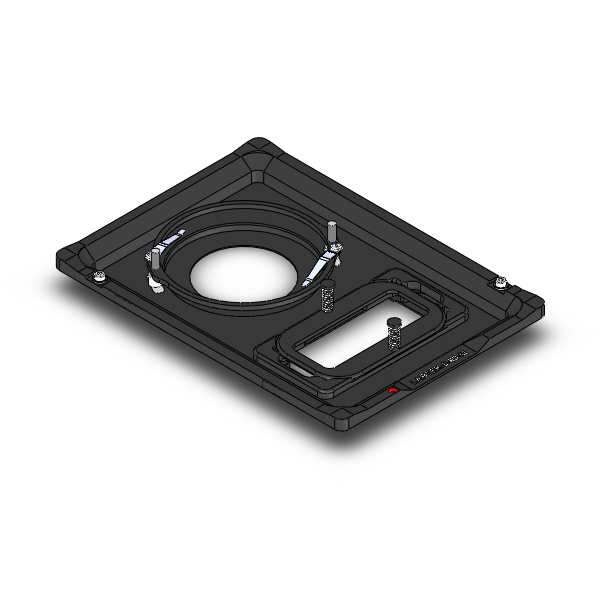

LABTEK-II-60-M	#1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish

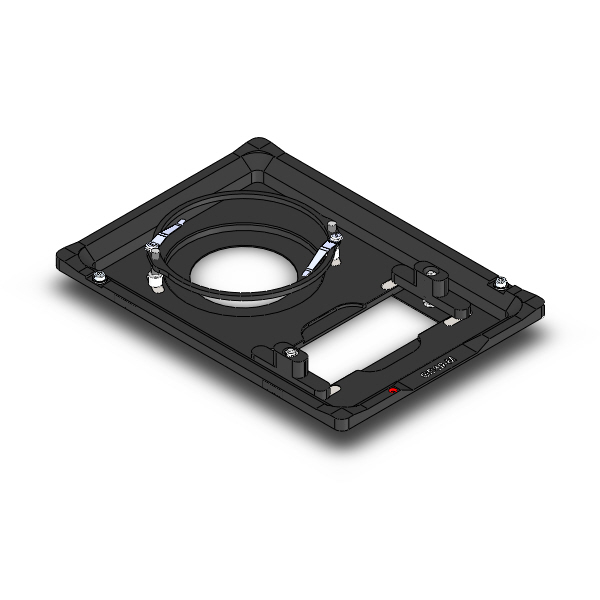

GS60-M	#1 1x3in. chamberslide and #1 60mm Petri-dish

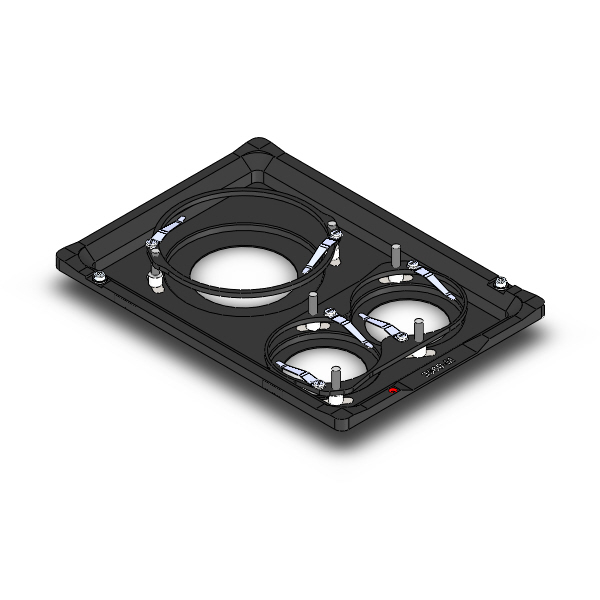

6035-M	#1 60mm Petri-dish and #1 35mm Petri-dish

Available LIDs

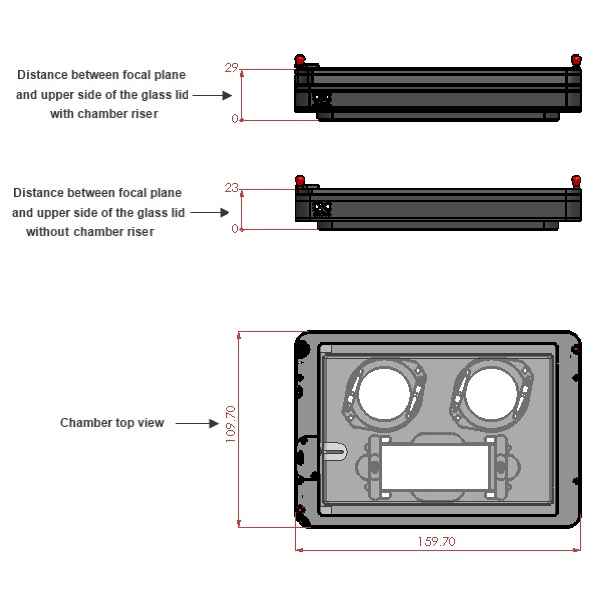

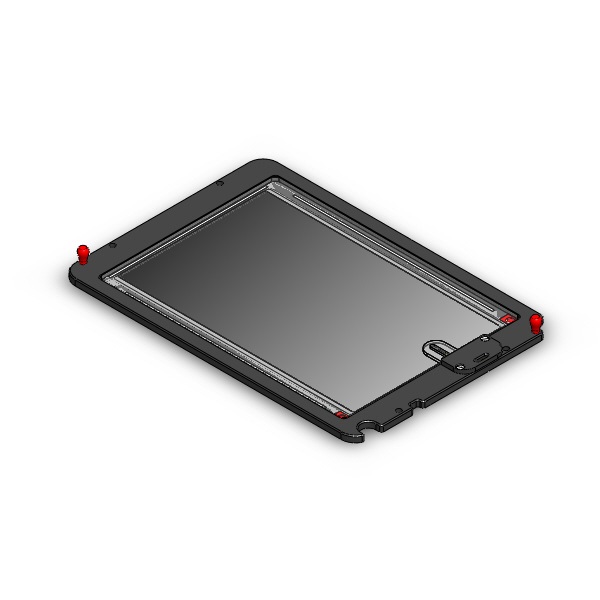

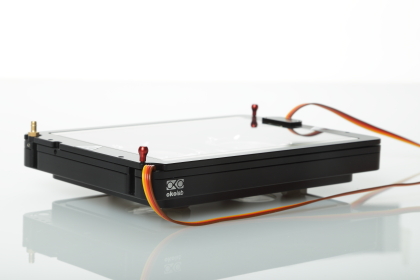

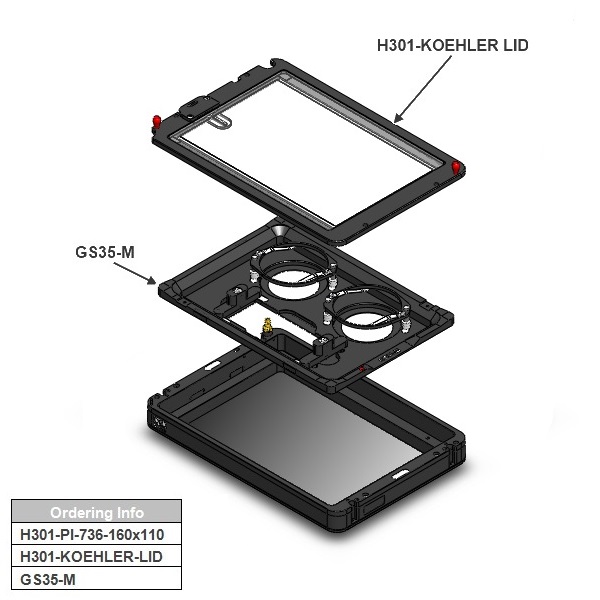

H301-KOEHLER LID	Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm
H301-INJECTION-LID	Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35

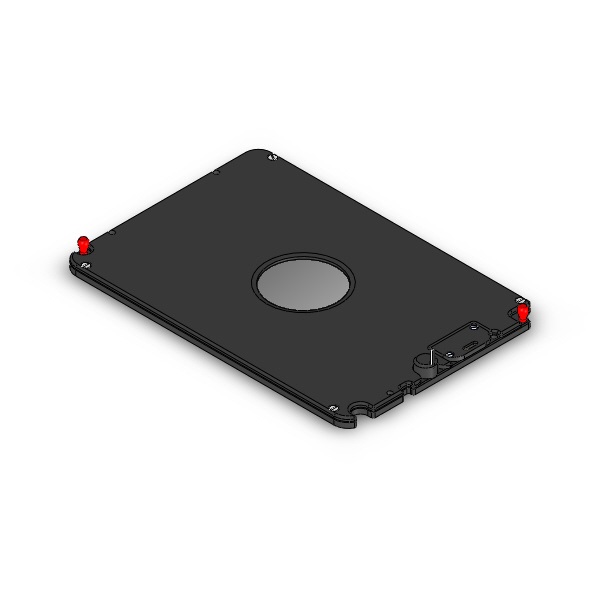

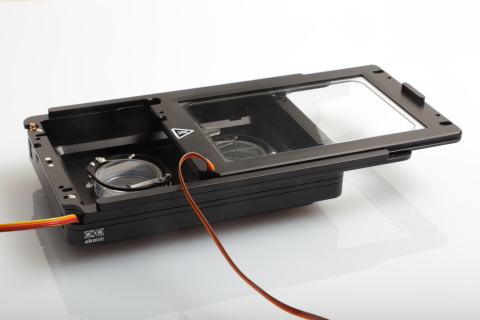

H301-LASER-INTERLOCK-LID	Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35
