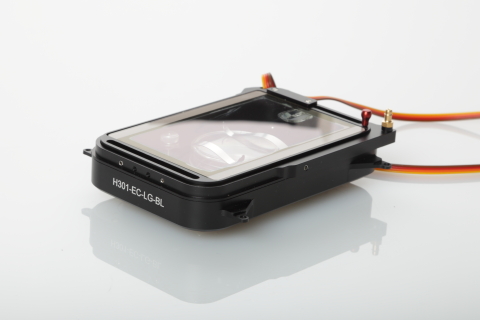

H301-EC-LG-BL

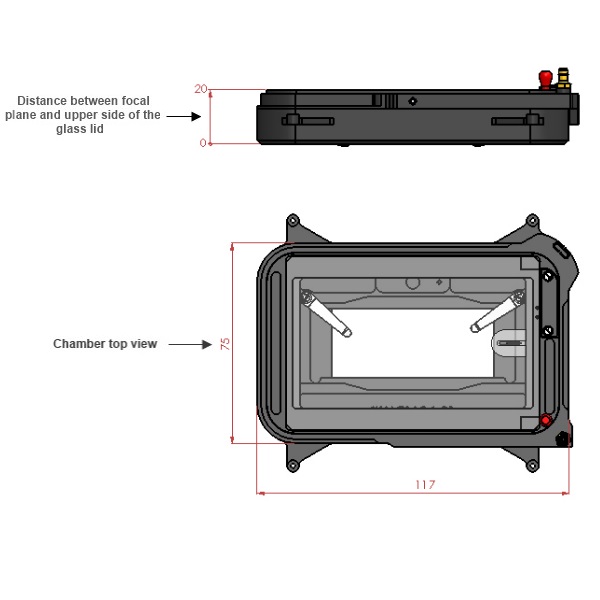

Stage compatibility: fits on the Leica Super Z Galvo Stage (SP5/SP8)
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- Total weight on galvo stage: 130 g
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available for perfusion
- The chamber fits on the XY stage and covers the Super Z galvo stage (SP5/SP8)

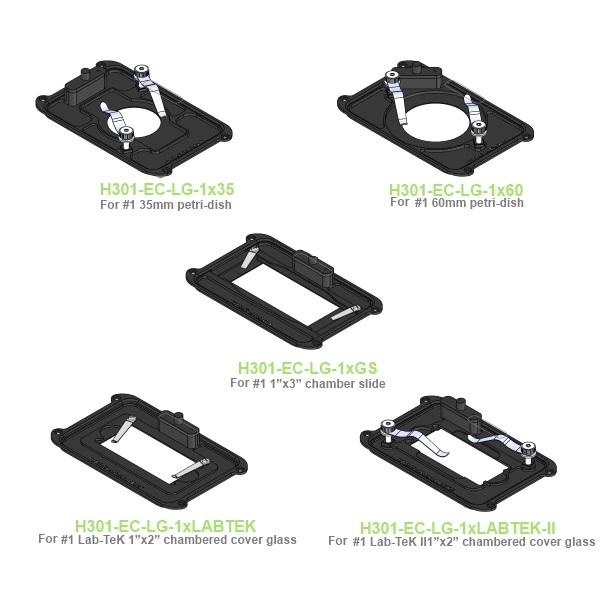

Available Inserts

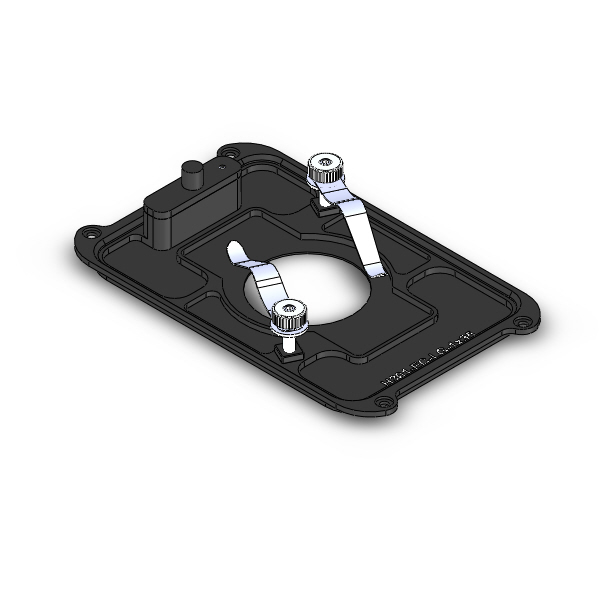

| H301-EC-LG-1x35 | #1 35mm Petri-dish |   |

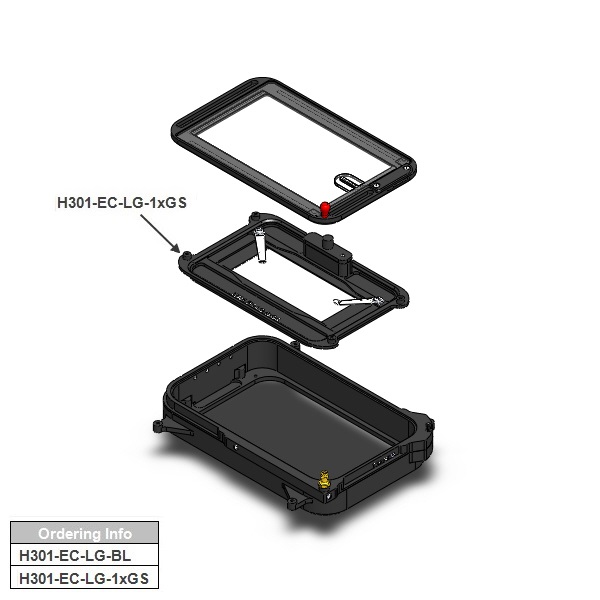

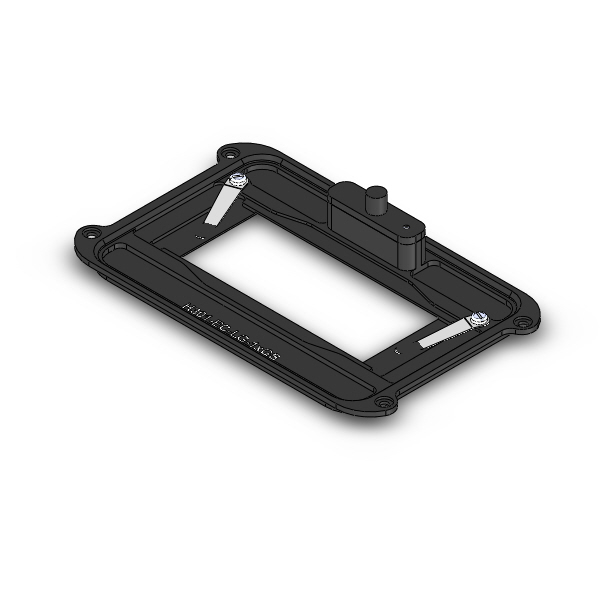

| H301-EC-LG-1xGS | #1 1x3in. chamberslide |  |

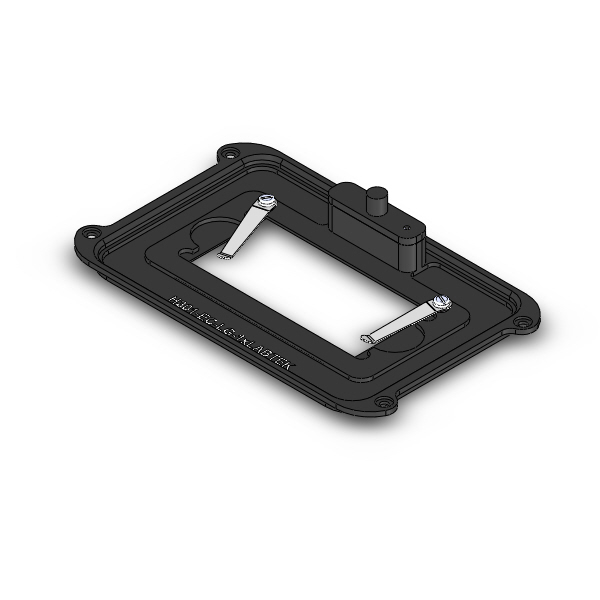

| H301-EC-LG-1xLABTEK | #1 Lab-Tek 1x2 in. chambered cover glass |  |

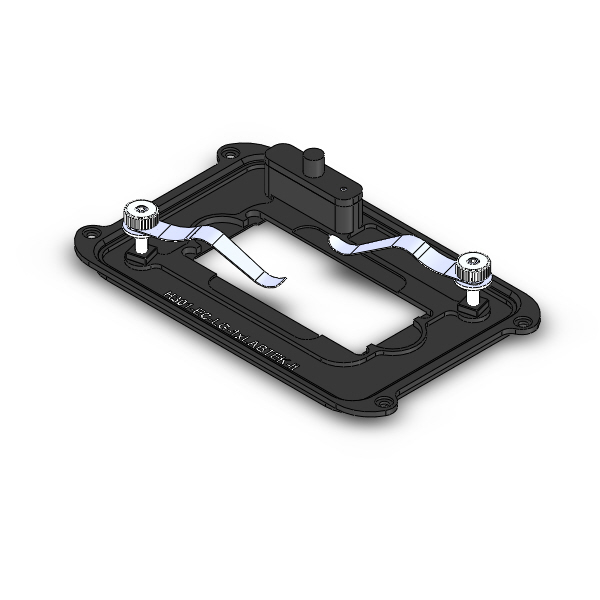

| H301-EC-LG-1xLABTEK-II | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| H301-EC-LG-1x60 | #1 60mm Petri-dish |  |
