H301-NIKON-NZ100/200/500-N
Stage compatibility: screws onto Mad City Labs NZ100/200/500-N mounted on Nikon Ti or Ti2 motorized and mechanical XY stage - comes with Sliding Lid
Magnetic interchangeable inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange chamber inserts
- It contains also an insert for oil immersion imaging
- Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
Koehler illumination ?
Remove the chamber riser and use the Koehler Lid
Perfusion ?
Each chamber features up to 12 holes for inlet and outler of perfusion tubings
Different sample holder ?
Change the chamber insert. It is a 5 seconds task with the magnetic sample holders
Keep the sample in the correct position by using the Magnetic Locks

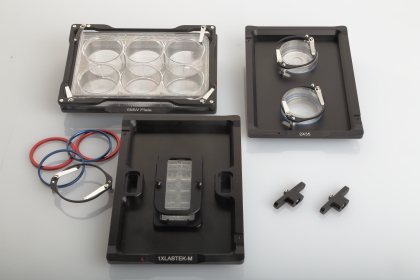

Available Inserts
| 6MW | 6 well plates |   |
| 12MW | 12 well plates |  |
| 24MW | 24 well plates |  |
| 24MW-NUNC | 24-well NUNC/GREINER plates |  |
| 48MW | 48-well plates |  |
| 96MW | 96-well plates. |  |
| MW-OIL | Open frame to image multi well plates with oil immersion objectives |  |
| 1x35-M | #1 35mm Petri-dish |  |
| 1xGS-M | #1 1x3in. chamberslide |  |
| 1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M | #1 60mm Petri-dish |  |
| 1xT25-M | #1 Nunc and Greiner T25 flask |  |
| 2x35-M | #2 35mm Petri-dish |  |
| 2xGS-M | #2 1x3in. chamberslides |  |
| 2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| 2x60-M | #2 60mm Petri-dish |  |
| 4x35-M | #4 35mm Petri-dish |  |
| GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| 6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |
Available LIDs
| H301-KOEHLER LID | Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm |  |
| H301-INJECTION-LID | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H301-LASER-INTERLOCK-LID | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |

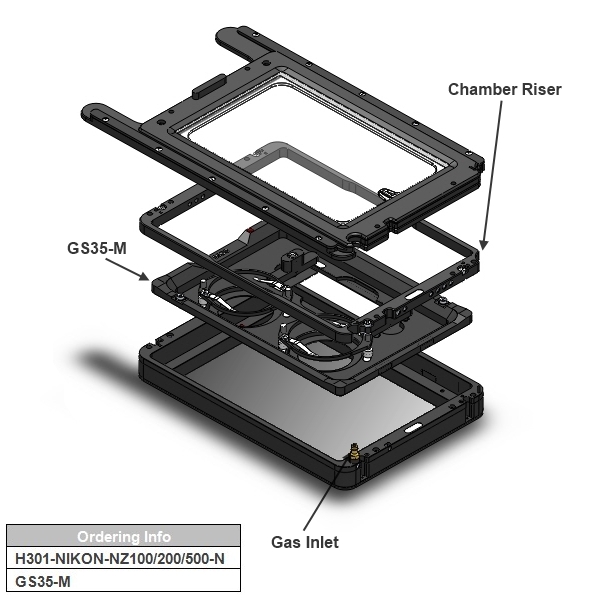

![H301-NIKON-NZ100-200-500-N-[SLIDING LID]-[Exploded].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_nikon_nz100_200_500_n/H301-NIKON-NZ100-200-500-N-%5BSLIDING%20LID%5D-%5BExploded%5D.jpg)

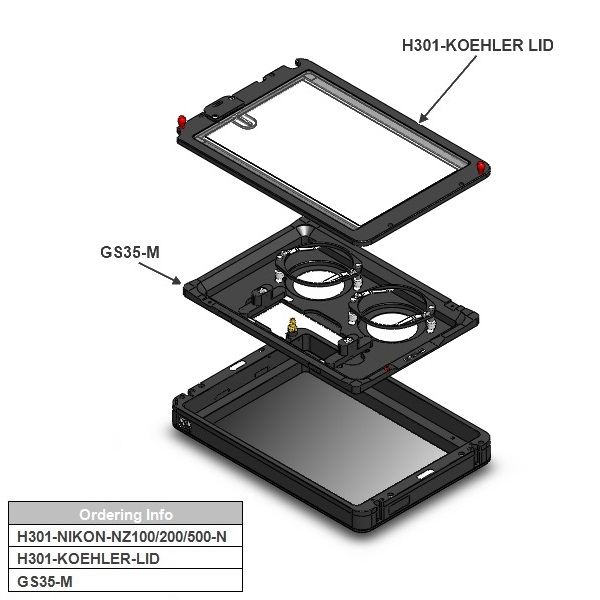

![H301-NIKON-NZ100-200-500-N-[KOEHLER LID]-[Exploded].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_nikon_nz100_200_500_n/H301-NIKON-NZ100-200-500-N-%5BKOEHLER%20LID%5D-%5BExploded%5D.jpg)

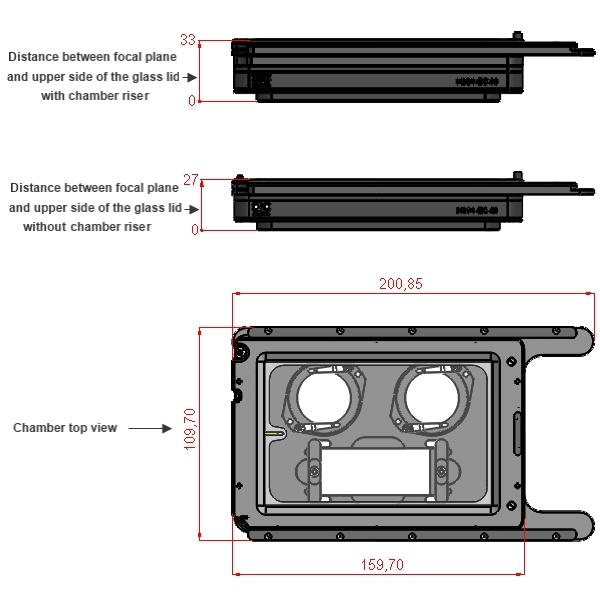

![H301-NIKON-NZ100-200-500-N-[SLIDING LID]-[DIMENSIONS].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_nikon_nz100_200_500_n/H301-NIKON-NZ100-200-500-N-%5BSLIDING%20LID%5D-%5BDIMENSIONS%5D.jpg)

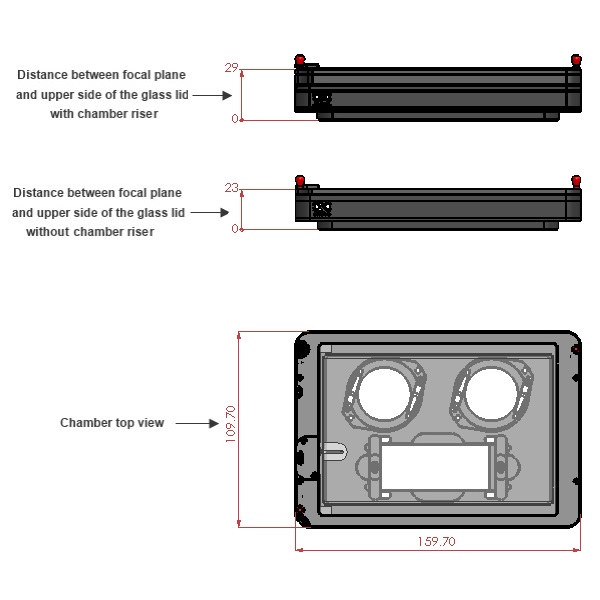

![H301-NIKON-NZ100-200-500-N-[KOEHLER LID]-[DIMENSIONS].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_nikon_nz100_200_500_n/H301-NIKON-NZ100-200-500-N-%5BKOEHLER%20LID%5D-%5BDIMENSIONS%5D.jpg)

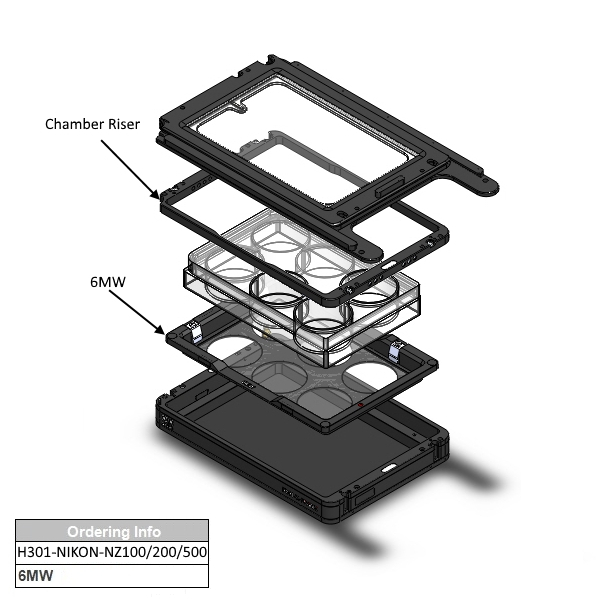

![H301-NIKON-NZ100-200-500-N-[6MW].jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_nikon_nz100_200_500_n/H301-NIKON-NZ100-200-500-N-%5B6MW%5D.jpg)
![H301-K-FRAME-[ADAPTERS-2]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_k_frame/H301-K-FRAME-%5BADAPTERS-2%5D_600x600.jpg)
![H301-K-FRAME-[ADAPTERS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_k_frame/H301-K-FRAME-%5BADAPTERS%5D_600x600.jpg)
![H301-K-FRAME-[MAGNETIC LOCKS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/top_satge_incubator/gas_chambers/h301_k_frame/H301-K-FRAME-%5BMAGNETIC%20LOCKS%5D_600x600.jpg)
